Apple Washing Optical Sorting Packing Line
Not one-size-fits-all — we customize.
Model:JCPG-20000I
Application:Apple
Dimension:37000*7800*2100mm
Grade:8 grades
Capacity:20000 pieces/h
Voltage:380V
Power:22.9kw

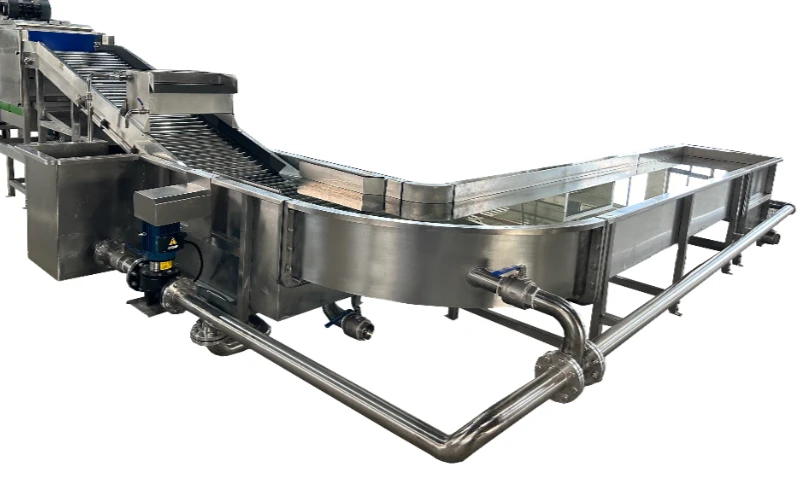

This JC SORT apple cleaning optical sorting machine is composed of a water pool
elevator, a fruit picking platform, a brush cleaning machine, a brush air-drying
machine, a optical grader and a packaging platform. The frame filled with apples is
pushed into the water pool elevator for soaking, then cleaned in the brush cleaning
machine, blown dry in the brush air-drying machine, and arranged on the V-shaped

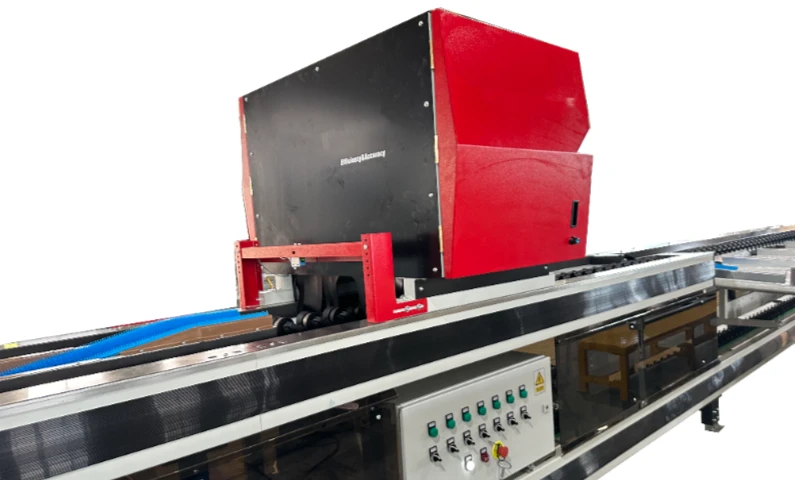

conveyor belt for transportation. The photoelectric shooting system can identify the
defects, color, size and weight of the apples. The graded apples are transported to the

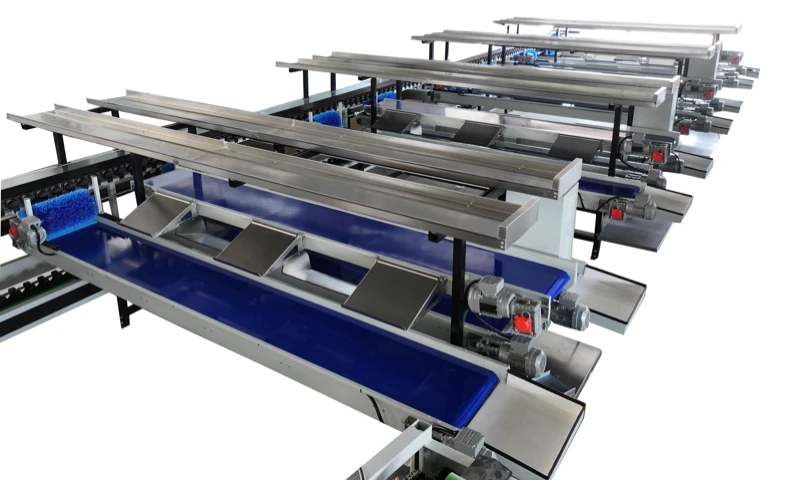

packaging platform through the conveyor belt, and the apples on the two grade conveyor
belts are transported to the combined packaging platform. The packing workers take the
frames from the empty box conveyor belt (fluent strip), put the frames on the inclined
packaging board, and then manually put the apples into the packaging box. When the box
is full, the frames are pushed to the full box conveyor belt, and the conveyor belt
transports the apples to the unpowered roller.
